Image quality assessment of still images evaluates key factors affecting imaging performance to ensure optimal results. These include:

• Geometric Distortion
• Chromatic Aberration
• Sharpness
• Resolution
• Light/Color Vignetting
• Flash Uniformity
• MTF across the whole field
• Ringing
• Texture Preservation
• Texture and Edge Acutance
• White Balance
• Color Fidelity
• Dynamic Range
• Tone Curve
• Visual Noise (compliant with IEEE CPIQ)
• Color Sensitivity (for RAW images)

A thorough evaluation of these parameters helps achieve the highest imaging quality and performance.

In addition to the measurements listed under Image Quality Assessment of Still Images, further analysis for video performance includes:

• Temporal Noise
• Spatial and Temporal Noise
• WB Adaptation and Convergence
• Exposure Convergence
• Focusing Time

These additional evaluations provide deeper insights into video imaging system performance, ensuring enhanced stability, responsiveness, and overall video quality.

Precise timing measurements are essential for evaluating imaging system performance. Key parameters include:

• Exposure Time
• Electronic Rolling Shutter
• Frame Rate
• Time Lags
• Autofocus Time Lag
• LED Flickering

Assessing these factors ensures accurate timing, responsiveness, and overall system reliability in various imaging applications.

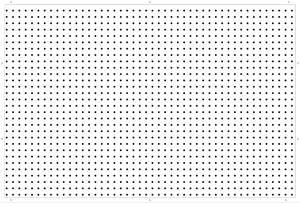

Dot Chart: DU0002_120 (1200mm x 900m)

• Distortion
• LCA (Lateral chromatic aberration)
• Sharpness
• Light/Color Vignetting
• Flash Uniformity

MTF Chart: SU0002_140 (1400mm x 970mm)

• MTF across the field
• longitudinal chromatic aberrations
• Ringing

Radial MTF Chart (IEEE-CPIQ & ISO 12233 compliant): SRU0002_140_P (1400mm x 970mm)

• Radial sagittal & tangential MTFs at different positions
• Low contrast chart

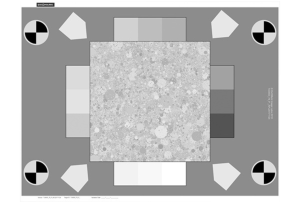

Dead-Leaves Chart: TU0003_78_P (785mm x603mm)

• Texture preservation
• Texture and edge acutance
• Focusing Time
• Lens breathing
• Acutance through time

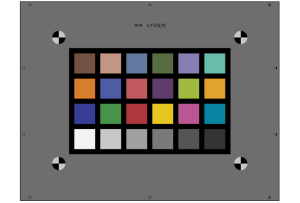

Color Chart: X-rite Color Checker Chart

• White balance
• Color fidelity
• Color sensitivity (RAW)
• AWB/AE convergence

Visual Noise Chart: VNU0002_140_P

• Visual noise
• Spatial and temporal noise

Color Fringing Chart: CF0002_32​

• Transmissive chart to measure color fringing

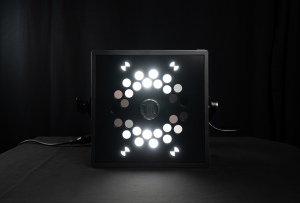

HDR Noise Chart​: HDR0002

• Transmissive chart up to 1/1,000,000 (120dB) dynamic range​
• HDR, OECF, dynamic and tonal range, tone curve, noise analysis

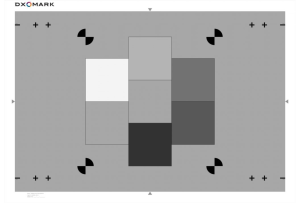

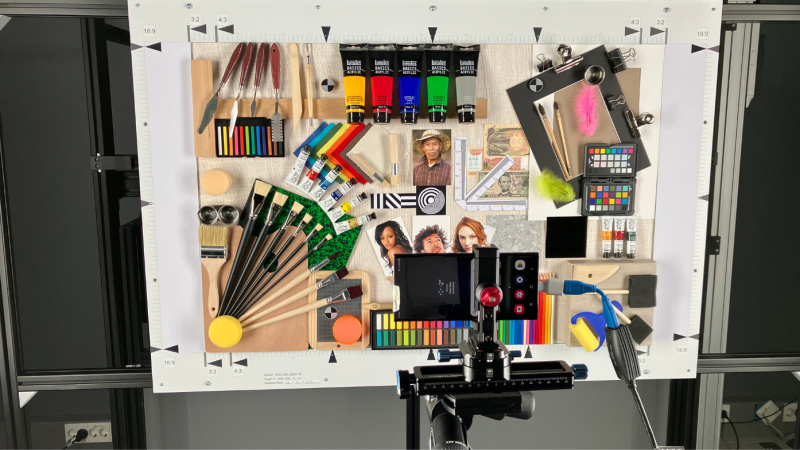

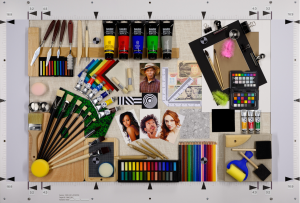

DXOMARK Chart​

• Perceptual analysis & AI-based metrics​
• Noise, detail preservation, resolution, color, white balance, etc.

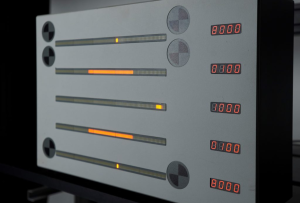

LED Universal Timer​

• Active “chart”: 5 computer-controlled LED arrays ​
• Exposure time, ERS, frame rate, missing frame, time lags, autofocus time lag, etc.​
• LED Flickering evaluation​

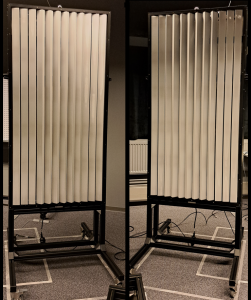

General information​

Lighting technology ​

• Fully LED based lighting
• 32 channels of LEDs of the visible spectrum ​
• 12 channels of high-power LEDs​
• 4 channels of Near Infra-Red LEDs​
• Flicker-free (DC-driven)​
• LED flicker on channel 4000K with adjustable frequency (50 to 1000Hz) – Duty cycle 50%​

Covered spectra ​

• 380 ~ 950nm​

Illuminance range ​

• From 0,1 to 10 000 lux (standard position)​
• Up to 50 000 lux (close position)​
• 90% uniformity in 120cm x 80cm targets (2m distance)​

Software control ​

• Web-based User Interface ​
• Python API​

Hardware control ​

• Ethernet​

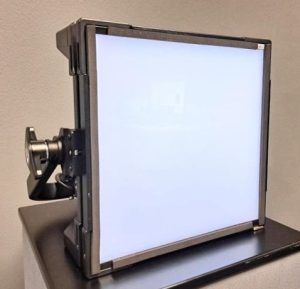

• LED Litepanel produces uniform light for transmissive test charts​
• Adjustable color temperature and light intensity

General information​

Lighting technology ​

• LED based lighting​

CCT range​

• 2700 ~ 10000K​

Luminance range ​

• 0 ~ 58000cd/m2​
